Eaton DG1-347D6FB-C21C PowerXL DG1 Variable Frequency Drive
Eaton DG1-347D6FB-C21C PowerXL DG1 Variable Frequency Drive
Product Details

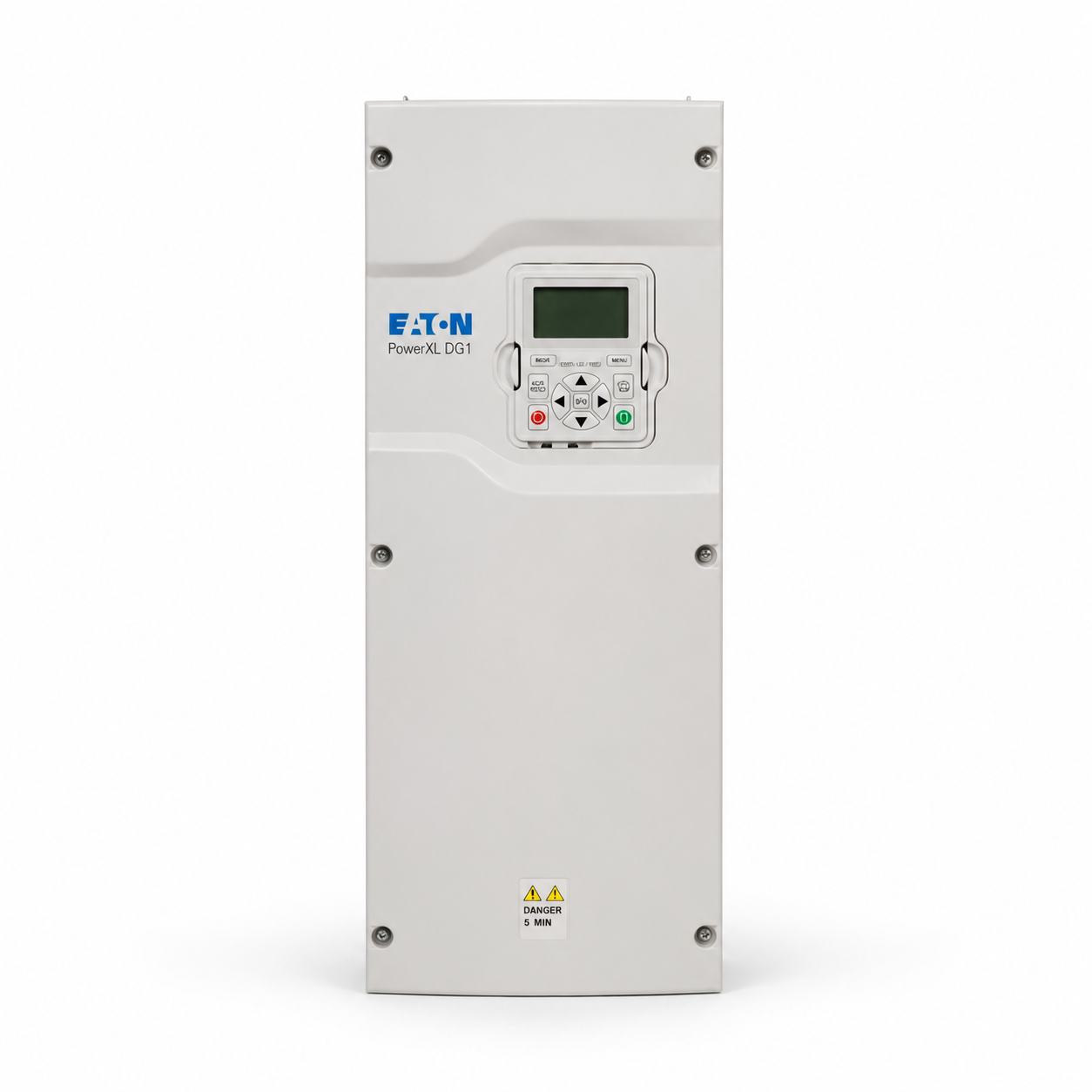

The Eaton DG1-347D6FB-C21C is a PowerXL DG1 Series variable frequency drive designed to control three-phase AC motors in industrial and commercial applications.
This compact Eaton VFD is rated for 5 HP constant-torque service, with a 380–500 VAC three-phase input and 7.6 A constant-torque output rating. It features an IP21/NEMA Type 1 enclosure, an LCD keypad, built-in industrial communications and an internal brake chopper.
Product Specifications
- Manufacturer: Eaton
- Brand: Eaton PowerXL
- Series: DG1
- Manufacturer Part Number: DG1-347D6FB-C21C
- Product Type: Variable Frequency Drive
- Motor Rating: 5 HP
- Power Rating: 3 kW
- Input Voltage: 380–500 VAC
- Common Voltage Class: 480 V
- Input Phase: Three Phase
- Input Frequency: 50/60 Hz
- Constant-Torque Output Current: 7.6 A
- Enclosure: IP21 / NEMA Type 1
- Frame Size: FR1
- Display: LCD keypad
- Brake Chopper: Included
- EMC Filter: Internal
- DC Choke: Internal
- Expansion Slots: Two
Built-In Communications
The Eaton PowerXL DG1 platform supports several commonly used industrial communication protocols:
- EtherNet
- Modbus TCP
- Modbus RTU
- BACnet MS/TP
- RS-485
Common Applications
The Eaton DG1-347D6FB-C21C can be used in applications such as:
- Conveyors
- Pumps
- Fans and blowers
- HVAC equipment
- Compressors
- Material-handling systems
- Industrial machinery
- Process equipment
Important Compatibility Information
Before purchasing or installing this drive, confirm the following information from the motor nameplate:
- Motor horsepower
- Motor voltage
- Full-load amperage
- Input power phase
- Required constant-torque or variable-torque duty
- Environmental and enclosure requirements
The connected motor’s full-load current must not exceed the applicable drive output-current rating.
Why Buy From Ampstate?
- Professionally inspected industrial electrical equipment
- One-year Ampstate warranty
- Fast RFQ and order support
- Shipping throughout Canada and the United States
- Secure online transactions
- Pickup and delivery options available
Contact Ampstate with the motor nameplate and application information for compatibility assistance.
Manufacturer names and part numbers are used for product identification. Ampstate is an independent supplier and is not an authorized Eaton distributor.
