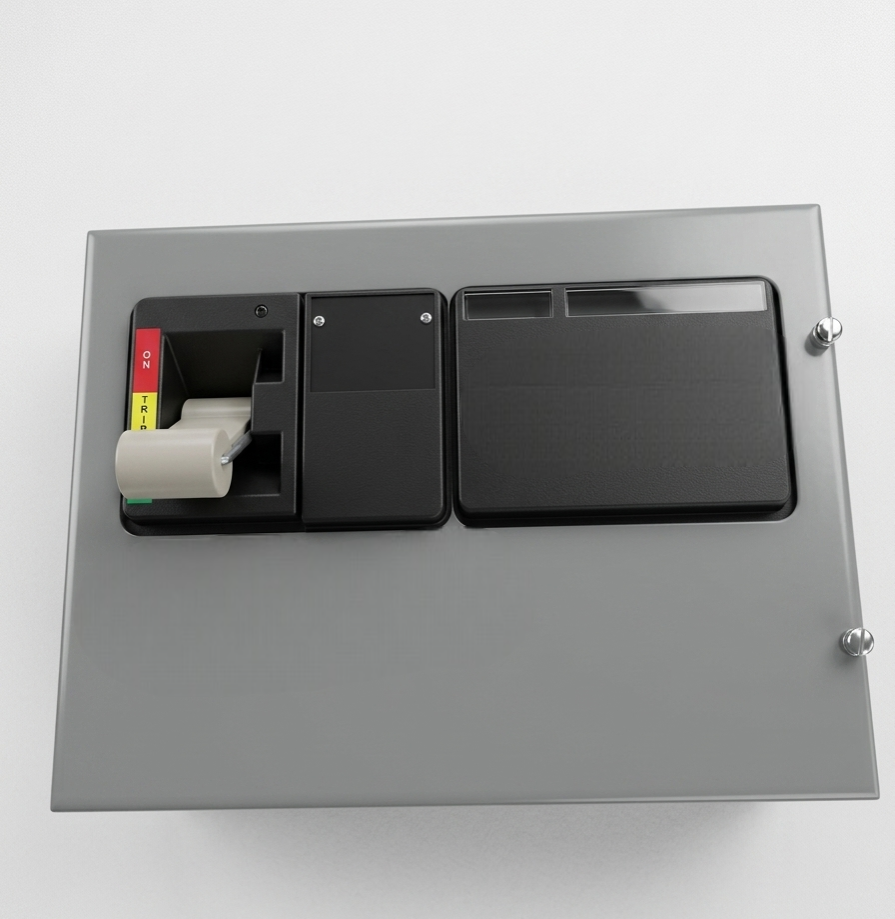

The Eaton Freedom 2100 Fusible MCC Bucket is a replacement plug-in motor control center bucket designed for compatible Eaton Freedom 2100 MCC lineups.

Also commonly identified under Cutler-Hammer Freedom 2100 and older Westinghouse Freedom 2100 branding, these fusible MCC buckets are used for feeder circuits, disconnect applications, motor starter circuits, industrial plant maintenance and MCC retrofit projects.

Ampstate supplies rebuilt, inspected and tested Eaton Freedom 2100 MCC buckets for electrical contractors, industrial facilities, panel builders, maintenance departments and shutdown replacement projects across Canada, the United States and worldwide.

Available Bucket Sizes

• 30A Eaton Freedom 2100 fusible MCC bucket
• 60A Eaton Freedom 2100 fusible MCC bucket
• 100A Eaton Freedom 2100 fusible MCC bucket
• 200A Eaton Freedom 2100 fusible MCC bucket
• 400A Eaton Freedom 2100 fusible MCC bucket
• 600A Eaton Freedom 2100 fusible MCC bucket
• 800A Eaton Freedom 2100 fusible MCC bucket

Availability depends on the required voltage, fuse type, bucket height, disconnect-switch design, bus-stab arrangement and MCC configuration.

Fuse Compatibility

These are fusible MCC buckets designed for Class J fuse applications. Each bucket size can accept Class J fuses within the matching fuse-holder amp range.

30A bucket: accepts Class J fuses up to 30A, including common ratings such as 1A, 3A, 6A, 10A, 15A, 20A, 25A, and 30A.

60A bucket: accepts Class J fuses up to 60A, including common ratings such as 35A, 40A, 45A, 50A, and 60A.

100A bucket: accepts Class J fuses up to 100A, including common ratings such as 70A, 80A, 90A, and 100A.

200A bucket: accepts Class J fuses up to 200A, including common ratings such as 110A, 125A, 150A, 175A, and 200A.

400A bucket: accepts Class J fuses up to 400A, including common ratings such as 225A, 250A, 300A, 350A, and 400A.

For example, if you need a 15A fused MCC bucket, select the 30A bucket size and confirm that it will be supplied with fuse holders suitable for 15A Class J fuses.

\Built for Replacement and Retrofit Applications

Eaton Freedom 2100 MCC buckets are widely used in industrial motor control centers throughout Canada and the United States.

Replacement buckets may be required when an existing unit is:

• Damaged
• Burned or overheated
• Missing
• Obsolete
• Mechanically worn
• Improperly modified
• No longer suitable for the connected load
• Required for an MCC expansion project

Ampstate can prepare a replacement Freedom 2100 fusible bucket based on the required amp rating, system voltage, fuse class, fuse size, disconnect-switch frame, bucket height, load connections, door hardware and vertical-bus stab configuration.

Common Applications

• Fusible feeder bucket replacement
• Industrial disconnect bucket replacement
• Motor starter bucket replacement
• Branch-circuit protection
• Plant maintenance
• Emergency shutdown replacement
• MCC retrofit projects
• MCC lineup expansion
• Replacement of damaged or obsolete buckets
• Manufacturing and processing facilities
• Water and wastewater facilities
• Commercial and institutional buildings
• Mining, aggregate and material-handling facilities

Product Features

Brand: Eaton / Cutler-Hammer / Westinghouse
Series: Freedom 2100
Product Type: Fusible MCC bucket
Available Amp Ratings: 30A, 60A, 100A, 200A, 400A and 600A
Poles: Three pole
Voltage: 240V, 480V or 600V configurations, subject to component verification
Fuse Type: Confirm based on the installed switch and application
Connection Type: Plug-in MCC vertical-bus stab
Operation: External door-mounted disconnect handle
Condition: Rebuilt, inspected and tested before shipment
Warranty: One-year Ampstate warranty
Shipping: Canada, USA and worldwide

Typical Components

Depending on the selected configuration, the Eaton Freedom 2100 fusible MCC bucket may include:

• Fusible disconnect switch
• Fuse clips or fuse holders
• Fuse reducers when required
• Three-phase vertical-bus stab assembly
• External operating handle
• Operating shaft and mechanism
• Door assembly
• Mechanical interlock
• Load-side lugs
• Bucket wrapper
• Mounting hardware
• Terminal blocks
• Control transformer
• Contactor and overload relay for starter applications
• Pilot devices and control components

Fuses are not included unless specifically stated in the product selection, quotation or order confirmation.

Eaton, Cutler-Hammer and Westinghouse Branding

Freedom 2100 MCC equipment may carry Eaton, Cutler-Hammer or Westinghouse branding depending on the manufacturing date and original equipment configuration.

Branding alone does not guarantee compatibility.

The bucket dimensions, stab design, vertical-bus arrangement, door configuration, disconnect mechanism and internal component layout must be reviewed before shipment.

Why Choose Ampstate?

• Specialized supplier of MCC buckets, breakers, bus plugs and switchgear
• Support for obsolete and hard-to-find industrial electrical equipment
• Custom Eaton Freedom 2100 MCC bucket configurations
• Replacement fusible feeder and starter buckets
• Inspected and tested equipment
• One-year Ampstate warranty
• Fast RFQ support
• Technical review using customer-supplied photos
• Shipping across Canada, USA and worldwide
• Support for contractors, panel shops, maintenance teams and industrial plants

Compatibility Check Before Ordering

Before ordering, please confirm:

• MCC manufacturer
• MCC series
• MCC nameplate information
• Required amp rating
• System voltage
• Required fuse class
• Required fuse size
• Bucket height
• Available MCC space
• Disconnect-switch frame size
• Vertical-bus stab arrangement
• Door-handle style
• Load cable size
• Load cable quantity
• Control voltage
• Starter horsepower, when applicable
• Required short-circuit rating
• Required delivery date

Photos are strongly recommended.

Please send clear photos of:

• Existing MCC bucket
• Front of the bucket
• Interior components
• Bucket side profile
• Rear vertical-bus stabs
• MCC structure
• MCC nameplate
• Disconnect-switch label
• Fuse clips
• Door and handle mechanism

Ampstate will review the information to help determine a suitable replacement configuration.

Final approval, installation and energization must be completed by qualified electrical personnel.

Need a Custom Freedom 2100 Fusible MCC Bucket?

Contact Ampstate with your required amp rating, voltage, fuse class, fuse size, bucket height and photos of your existing MCC equipment.

Our team can help review replacement options for Eaton, Cutler-Hammer and Westinghouse Freedom 2100 motor control centers.

Call +1 877-780-4466 or email sales@ampstate.com.

Frequently Asked Questions

What is an Eaton Freedom 2100 fusible MCC bucket?

An Eaton Freedom 2100 fusible MCC bucket is a removable motor control center unit containing a fusible disconnect switch. The bucket connects to the MCC vertical bus and distributes power to a feeder, branch circuit or motor starter.

Is Eaton Freedom 2100 the same as Cutler-Hammer Freedom 2100?

Freedom 2100 equipment may carry Eaton or Cutler-Hammer branding depending on its manufacturing date. Some older equipment may also carry Westinghouse branding. Physical compatibility must still be verified before ordering.

Will this bucket fit every Freedom 2100 MCC?

No. Compatibility depends on the bucket dimensions, MCC structure, vertical-bus arrangement, stab design, door configuration and available space.

Are fuses included?

Fuses are included only when specifically stated in the product selection or quotation.

What fuse class does the bucket use?

The fuse class depends on the installed disconnect switch and fuse clips. Send photos or component part numbers so Ampstate can review the configuration.

Can I order a 15A Freedom 2100 fusible bucket?

A 15A application may use a larger disconnect frame with suitable fuse clips or reducers. The required fuse class, switch frame and protection requirements must be confirmed before ordering.

Is the bucket available for 600V systems?

600V configurations may be available. The voltage rating of the bucket, disconnect switch and all internal components must be verified before shipment.

Can Ampstate supply a motor starter version?

Yes. Custom Freedom 2100 fusible starter buckets may be available with a contactor, overload relay, control transformer, terminal blocks and pilot devices.

Can Ampstate replace a damaged or obsolete bucket?

Yes. Send photos, dimensions, nameplate details and electrical requirements so the replacement configuration can be reviewed.

Do you ship to the United States?

Yes. Ampstate ships industrial electrical equipment across Canada, the United States and worldwide.

Does the bucket include a warranty?

Ampstate-tested and refurbished equipment is supplied with a one-year Ampstate warranty unless otherwise stated.
