Eaton CND312T36W 1200A 3-Pole 600V Circuit Breaker – Digitrip 310 LSIG
Eaton CND312T36W 1200A 3-Pole 600V Circuit Breaker – Digitrip 310 LSIG
Product Details

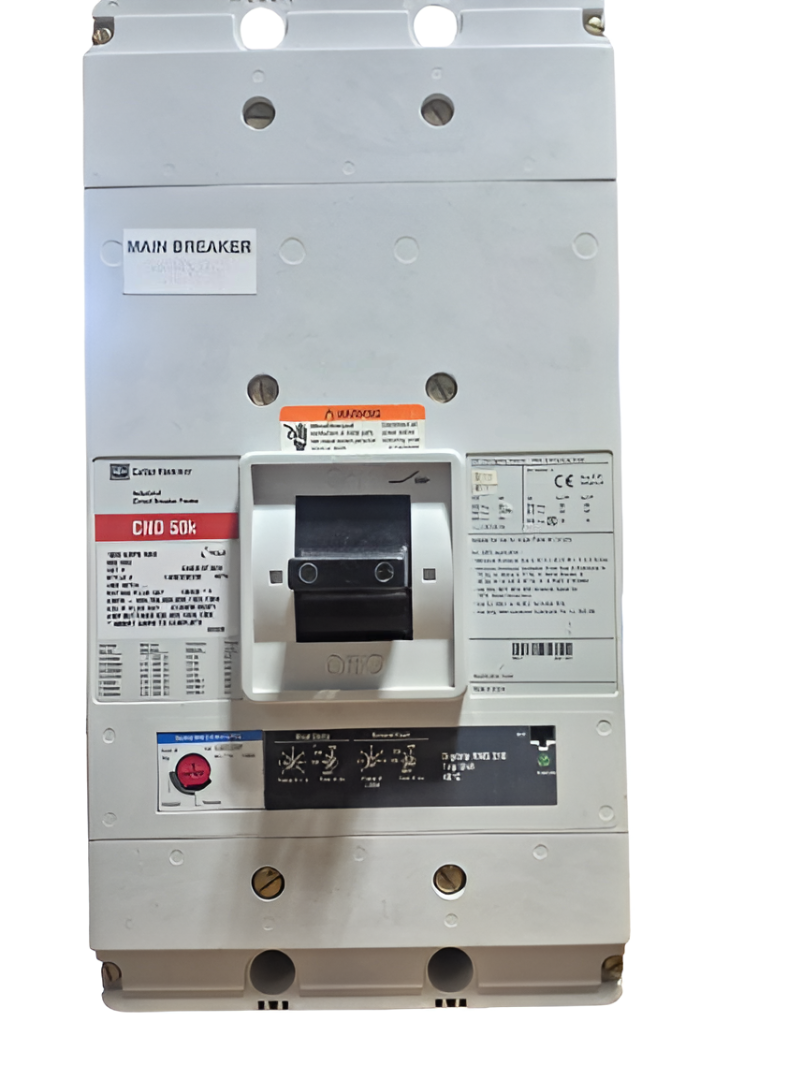

The Eaton Cutler-Hammer CND312T36W is a 1200-amp, three-pole electronic molded-case circuit breaker designed for commercial and industrial power-distribution applications. This Series C NG-frame breaker features a Digitrip 310 RMS electronic trip unit with adjustable LSIG protection.
The CND312T36W is rated for operation up to 600VAC and provides an interrupting capacity of 50kA at 480VAC. Its 100% continuous-current rating makes it suitable for demanding switchboard, distribution-panel and main-breaker applications when installed according to Eaton requirements.
PRODUCT SPECIFICATIONS
- Manufacturer: Eaton / Cutler-Hammer
- Catalog number: CND312T36W
- Product type: Molded-case circuit breaker
- Series: Series C
- Breaker type: CND
- Frame: NG
- Rated current: 1200A
- Number of poles: 3
- Voltage rating: 600VAC
- Frequency: 50/60Hz
- Interrupting rating: 50kAIC at 480VAC
- Interrupting rating at 240VAC: 85kAIC
- Trip unit: Digitrip 310 RMS
- Trip functions: LSIG
- Long-time protection: Yes
- Short-time protection: Yes
- Instantaneous protection: Yes
- Ground-fault protection: Yes
- Trip type: T172
- Continuous-current rating: 100%
- Terminals/lugs: Not included unless otherwise stated
- Approximate dimensions: 8.25 × 8.25 × 5.5 inches
- Approximate weight: 45 lb
- Compliance: HACR rated
APPLICATIONS
- Main distribution breakers
- Industrial switchboards
- Commercial electrical distribution
- Motor-control centres
- Feeder protection
- 480V and 600V electrical systems
CONDITION
Condition and included accessories are as shown in the product photographs. Please contact Ampstate before ordering if specific lugs, mounting hardware, auxiliary contacts, shunt trip or other accessories are required.
IMPORTANT
Breaker compatibility must be confirmed using the complete catalog number, voltage, interrupting rating, trip functions, mounting arrangement and terminal requirements. Installation and testing must be completed by qualified electrical personnel.
