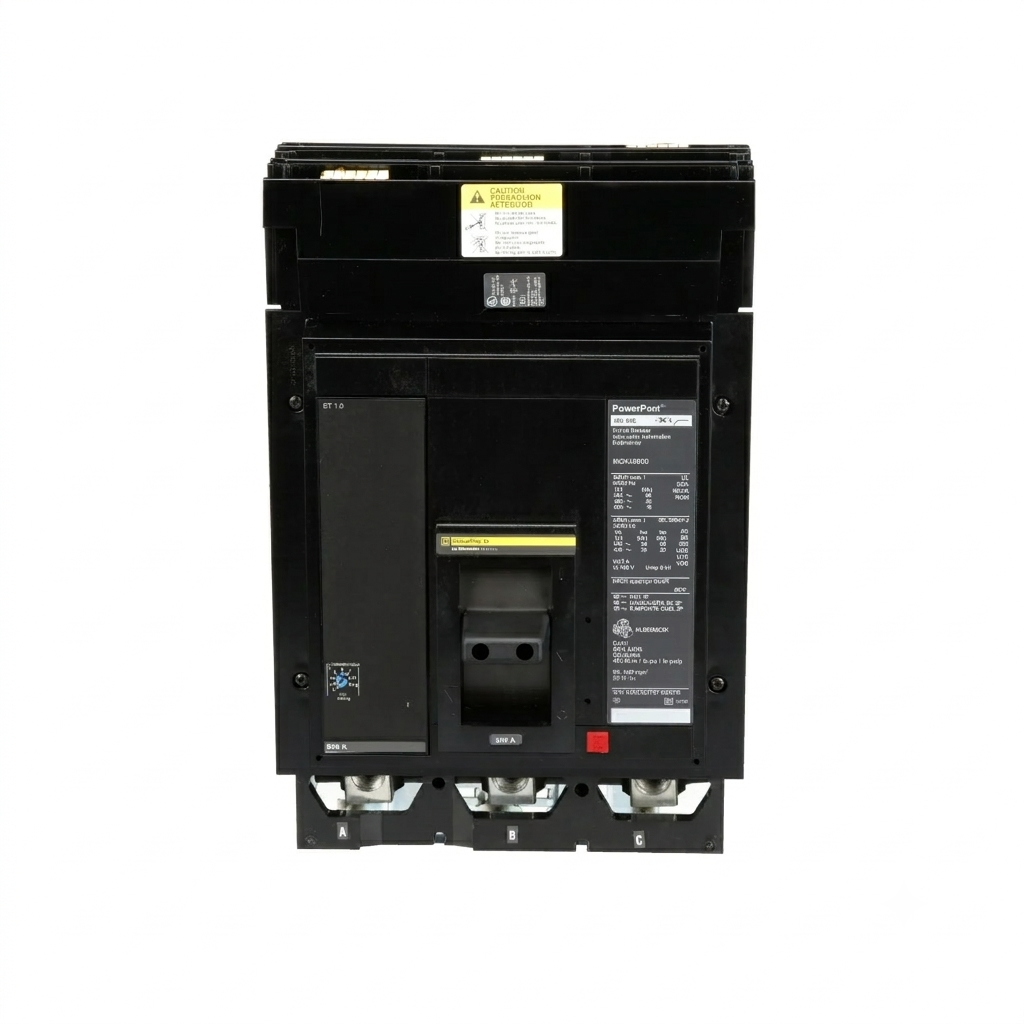

MGA36800 | Square D PowerPacT 800A 3-Pole 600V I-Line Circuit Breaker
Make an Offer
MGA36800 | Square D PowerPacT 800A 3-Pole 600V I-Line Circuit Breaker
MGA36800 | Square D PowerPacT 800A 3-Pole 600V I-Line Circuit Breaker
For discounted pricing and current lead times, please contact us at sales@ampstate.com.
Product Details
The Square D MGA36800 is an 800-amp, 3-pole PowerPacT M-frame molded-case circuit breaker designed for commercial and industrial power-distribution applications. It features an I-Line plug-in connection, load-side lugs and an ET 1.0 electronic trip unit providing long-time and instantaneous protection.
Product Specifications
- Manufacturer: Schneider Electric / Square D
- Part Number: MGA36800
- Product Family: PowerPacT M
- Breaker Type: Molded-Case Circuit Breaker
- Frame Type: M-Frame
- Rated Current: 800A
- Number of Poles: 3
- Maximum Voltage: 600VAC
- Phase: 3-Phase
- Mounting: I-Line Plug-In
- Trip Unit: ET 1.0 Electronic Trip
- Protection Functions: LI – Long-Time and Instantaneous
- Continuous Current Rating: 80%
-
Interrupting Rating:
- 65kA at 240VAC
- 35kA at 480VAC
- 18kA at 600VAC
- Line Connection: I-Line
- Load Connection: Mechanical Lugs
- Conductor Range: Three 3/0 AWG to 500 kcmil aluminium or copper conductors per phase
- Operating Mechanism: Toggle Handle
- Phase Connection: ABC
- Certifications: UL and CSA
Applications
Suitable for I-Line panelboards, switchboards, industrial distribution systems, commercial electrical installations and equipment requiring dependable 800A overcurrent and short-circuit protection.
Condition and Availability
Available in new, surplus or professionally reconditioned condition, depending on current inventory. Product appearance may vary from the reference images.
Please confirm the required condition, accessories and application before ordering. Contact Ampstate for current pricing, availability and shipping options across Canada and the United States.
