Siemens SBH2016 1600A 3-Pole 600V LSIG Drawout Breaker – 1600A Frame | 120V Control Voltage
Make an Offer
Siemens SBH2016 1600A 3-Pole 600V LSIG Drawout Breaker – 1600A Frame | 120V Control Voltage
Siemens SBH2016 1600A 3-Pole 600V LSIG Drawout Breaker – 1600A Frame | 120V Control Voltage
For discounted pricing and current lead times, please contact us at sales@ampstate.com.
Product Details
he Siemens SBH2016DV is an electrically operated, three-pole drawout systems breaker designed for heavy-duty industrial and commercial power-distribution applications.
This breaker uses a 1600-amp SBH frame with an installed 1200 or 1600-amp rating plug. It is rated for operation at up to 600 Vac and features an electronic LSIG trip unit, providing long-time, short-time, instantaneous, and ground-fault protection.
The breaker provides high interrupting ratings of 200 kA at 240 Vac, 150 kA at 480 Vac, and 100 kA at 600 Vac.

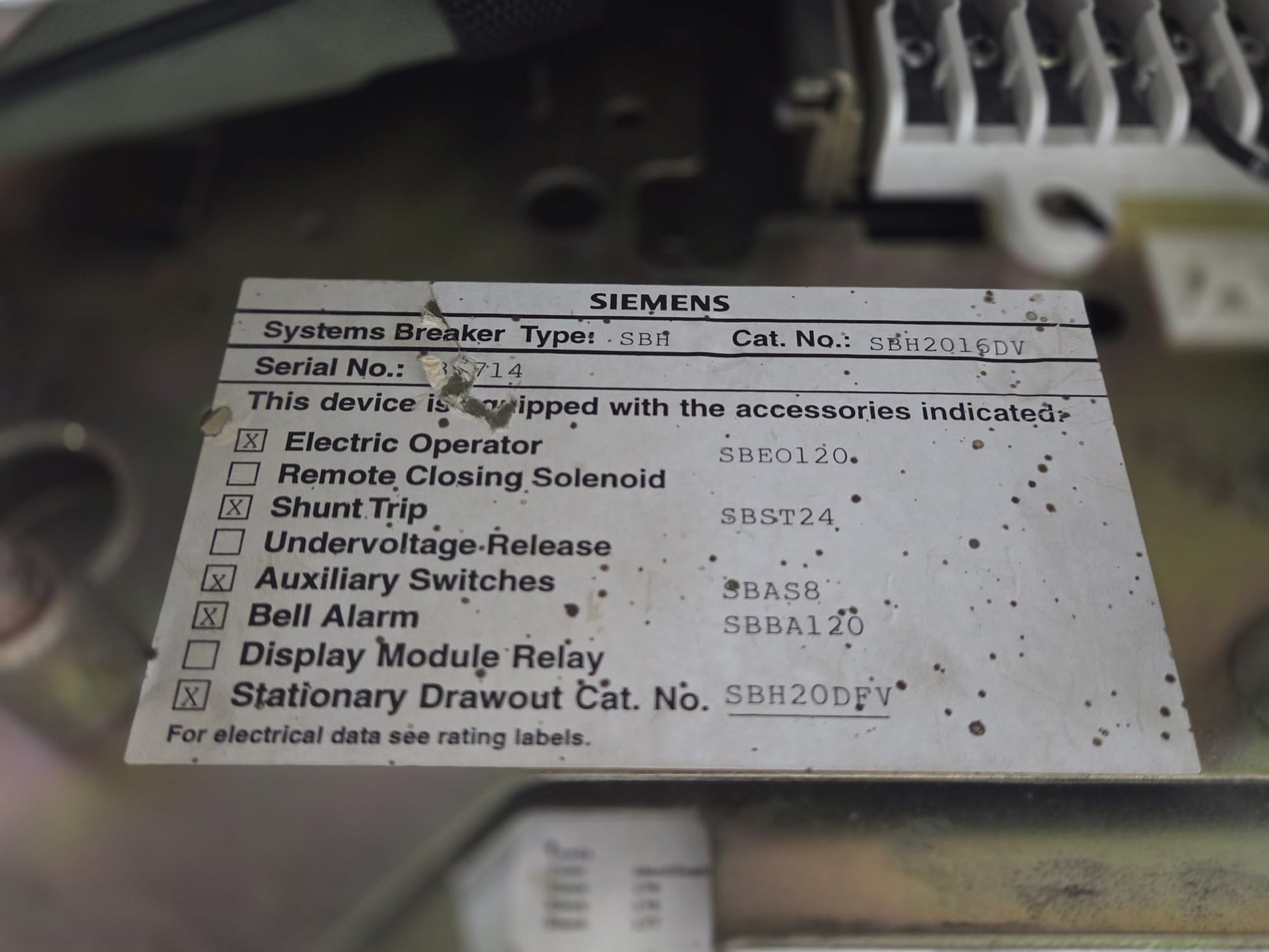

This unit is equipped with an electric operator, shunt trip, auxiliary switches, bell alarm, and stationary drawout configuration.
Key features
- Siemens catalog number: SBH2016DV
- Siemens SBH systems breaker
- 1600A maximum frame rating
- Installed 1200A rating plug
- Three-pole construction
- Maximum voltage: 600 Vac
- Electronic LSIG trip protection
- 200 kA interrupting rating at 240 Vac
- 150 kA interrupting rating at 480 Vac
- 100 kA interrupting rating at 600 Vac
- Electrically operated
- Stationary drawout construction
- Shunt trip installed
- Auxiliary switches installed
- Bell alarm installed
- 50/60 Hz
- UL Listed and CSA marked
Rating plug can be changed to 1200A or 1600A or other Amp as per customer need
