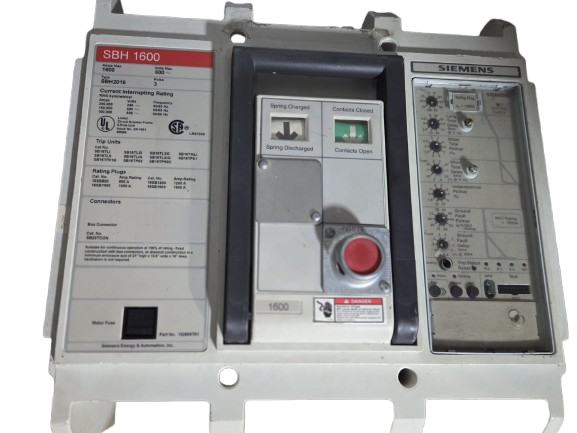

Siemens SBH2016DV 1600A Frame 3-Pole 600V LSIG Drawout Breaker – 24V Operator
Siemens SBH2016DV 1600A Frame 3-Pole 600V LSIG Drawout Breaker – 24V Operator
Product Details
The Siemens SBH2016DV is a three-pole, 600V industrial systems breaker built on the Siemens SBH 1600A frame. This unit features electronic LSIG protection and a stationary drawout configuration for use in compatible Siemens switchgear and power-distribution equipment.
This specific breaker is equipped with a 24V electric operator, 24V shunt trip, auxiliary switches, bell alarm and stationary drawout hardware.
The final continuous-current rating must be confirmed from the installed rating plug shown on the breaker’s front trip unit. The 1600A designation is the maximum frame rating and should not automatically be treated as the installed amp rating.

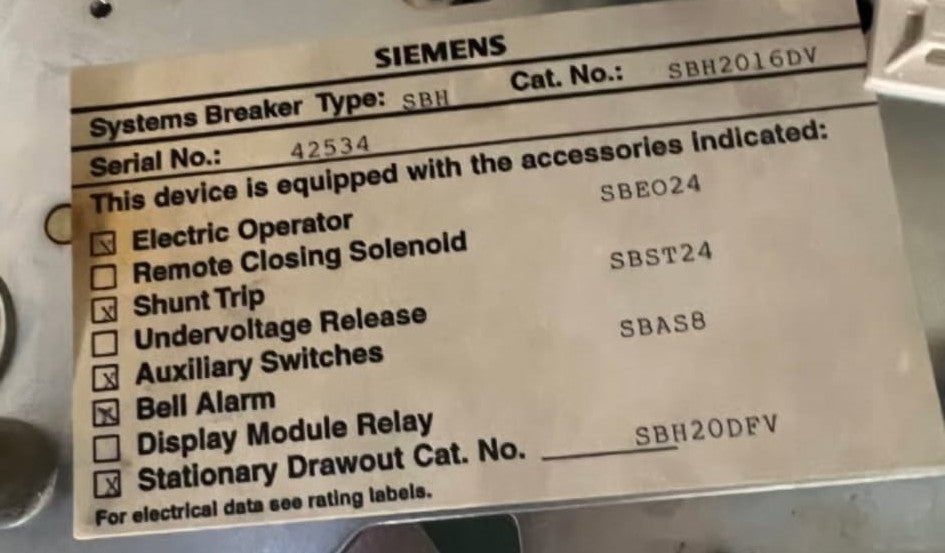

Confirmed Nameplate Details
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Catalog Number | SBH2016DV |
| Systems Breaker Type | SBH |
| Frame Size | 1600A maximum |
| Poles | 3 |
| Maximum Voltage | 600 Vac |
| Mounting | Stationary drawout |
| Drawout Catalog Number | SBH20DFV |
| Serial Number | 42534 |
| Trip Protection | Electronic LSIG |
| Electric Operator | SBEO24 |
| Shunt Trip | SBST24 |
| Auxiliary Switches | SBAS8 |
| Bell Alarm | Installed |
| Remote Closing Solenoid | Not indicated |
| Undervoltage Release | Not indicated |
| Display Module Relay | Not indicated |
Installed Accessories
- SBEO24 electric operator
- SBST24 shunt-trip accessory
- SBAS8 auxiliary-switch assembly
- Bell alarm
- SBH20DFV stationary drawout configuration
Important Amp-Rating Notice
The breaker frame is rated up to 1600 amps, but the actual operating current depends on the installed rating plug.
Use this wording until the front rating plug is confirmed:
Siemens SBH2016DV, 1600A maximum frame, installed rating plug to be confirmed.
Do not advertise it as a fixed 1600A breaker unless a 1600A rating plug is installed.
Typical Applications
- Siemens low-voltage switchgear
- Main breaker sections
- Feeder breaker sections
- Industrial power-distribution systems
- Commercial electrical distribution
- Replacement and retrofit applications
- Electrically operated switchgear systems
Compatibility must be confirmed using the complete breaker catalog number, cradle configuration, control voltage, secondary connections and installed accessories.
Condition Description
Reconditioned: Previously installed industrial circuit breaker that has been inspected, cleaned and mechanically operated. Electrical testing documentation may be provided when included with the sale or ordered separately.
Actual photographs should be used because rating plugs, trip units, accessories and cosmetic condition can vary between units.
